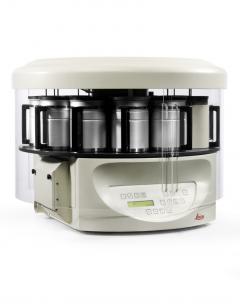

Specifications of Tissue Processor with Vacuum with Standard Accessories:-

Having the Following:

• Automatic tissue processing machine with Fixabls Formation/Fomal solution 5 liter each, Dehydrants - Ethanol 70% 10%, 100% 2 liter each, Acetone  - 2 liter Clearing agent xylene or its substitutes, paraffin wax or Histoplast 2 Liter.
• Microprocessor controlled Carousal type Tissue processor with 9 freely selectable programs.
• User programmable parameters like infiltration time ; delay time, vacuum on -off, agitation on-off and 80-100 cassettes capacity.
• Programmable infiltration time from 5 min to 99 hours 59 mins in 1 increment
• Excess temperature cut of facility to avoid tissue loss.
• Delay start up function to upto 9 days advance.
• Drain time of 60 sec in each station to reduce carry over contamination.
• Reagent containers of 1.8 liters with seals to minimize evaporation and expose the hazardous fumes.
• Vacuum for all stations mandatory and vacuum pump will integrate in the instrument and fume control system to minimize the contamination of reagent fumes in the lab environment.
• Vertical Agitation for each station as per need and 3 sec per cycle
• Maximum safety concept with automatic immersion of the tissue basket in to the beaker in case of power failure.
• Audible alarms , error messages and warning codes for maximum safety.
• Equipment will have aluminum reagent vessels with handle to remove the vessels.
• Wax bath with temperature adjustment from 45-65 degree celsius.
• Thermostatically controlled wax bath and excess temperature cutout facility at 75 degree Celsius
• Electronic locking facility to avoid inadvertent operation.
• Facility of manually lift the carousal and remove tissues in case of long power failures.
• Activated Carbon Filter System with
• Advance safety concept and DIN EN ISO 9001 Certification.
• 15000 reusable tissue cassettes will be provided
• UPS for maximum 4 hours
• Warranty for 2 years
